• Description
  • Applications
  • Details
  • Specifications
  • Max. Load 150kg
  • Max. Ascent Speed 19m/min
  • Applicable Rope Diameter 9-14mm

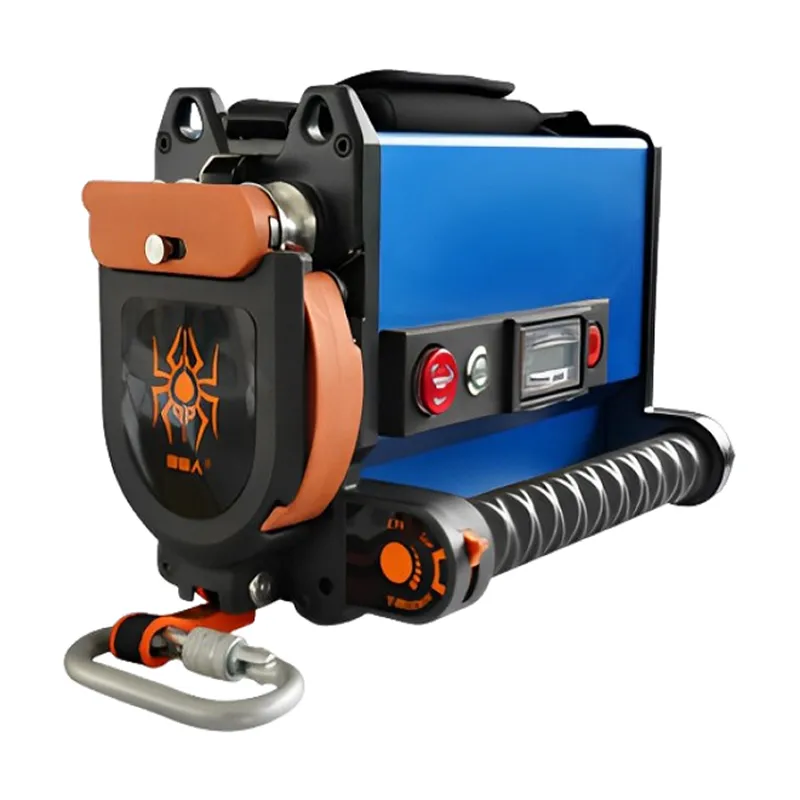

Electric Ascender (up to 150kg load)
Request a Quote

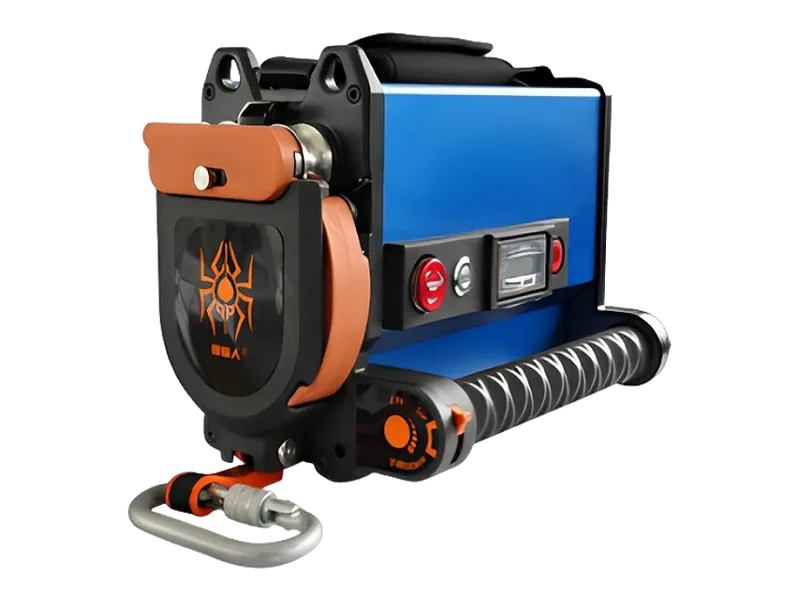

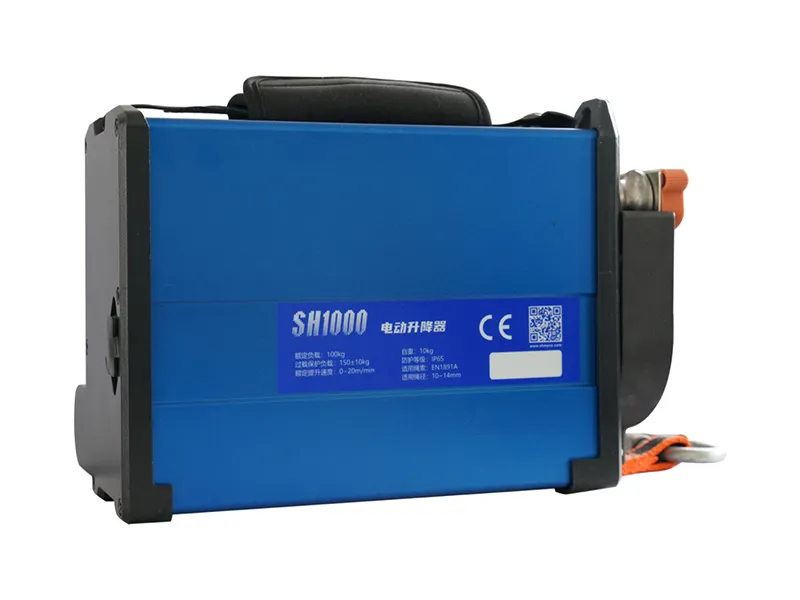

The SH1000 electric ascender is a compact and powerful battery-powered rope ascender, ideal for aerial work operations, building maintenance, and extreme outdoor activities. With a total weight of only 12.5 kg, including the battery, this ascender significantly reduces the load on operators, making it perfect for single-person lifting operations. It supports a maximum load of 150 kg, ensuring it can handle a variety of tasks safely and efficiently.

Equipped with a high-capacity lithium battery, this rope ascender can continuously ascend for up to 30 minutes, reaching heights of 600 meters at a speed of 20 meters per minute. The battery does not consume power during descents, further enhancing its operational efficiency. The ascender utilizes an advanced rope-clamping technology, making it compatible with static ropes ranging from 9-14mm in diameter, in accordance with EN1891A standards.

Key features of this electric ascender include an accurate coulomb meter for precise battery level indication and a wireless remote control with a range exceeding 150 meters, which also offers variable speed operation, allowing users to adjust the ascender's performance according to the task at hand. The power ascender is designed to operate in temperatures from -20°C to 60°C, with an option for customization to withstand extreme cold conditions as low as -30°C.

This battery-powered rope ascender is not only efficient and reliable but also cost-effective, making it a valuable tool for aerial operation workers. Whether you run a small business or a large enterprise, the electric ascender can be tailored to meet your specific needs, ensuring the safety of your workers, reducing the number of personnel required, and lowering equipment investment costs.

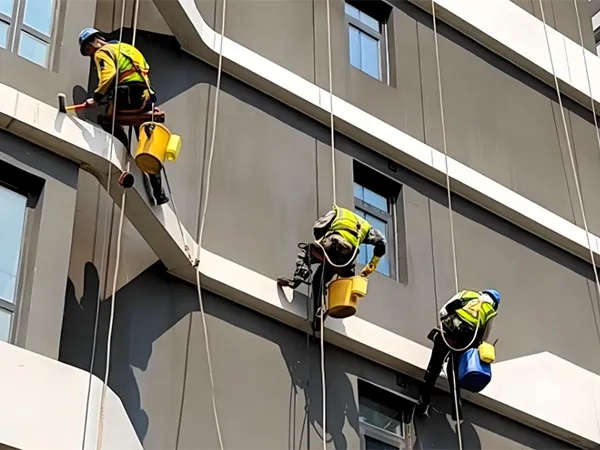

Applications
Details
  • Details

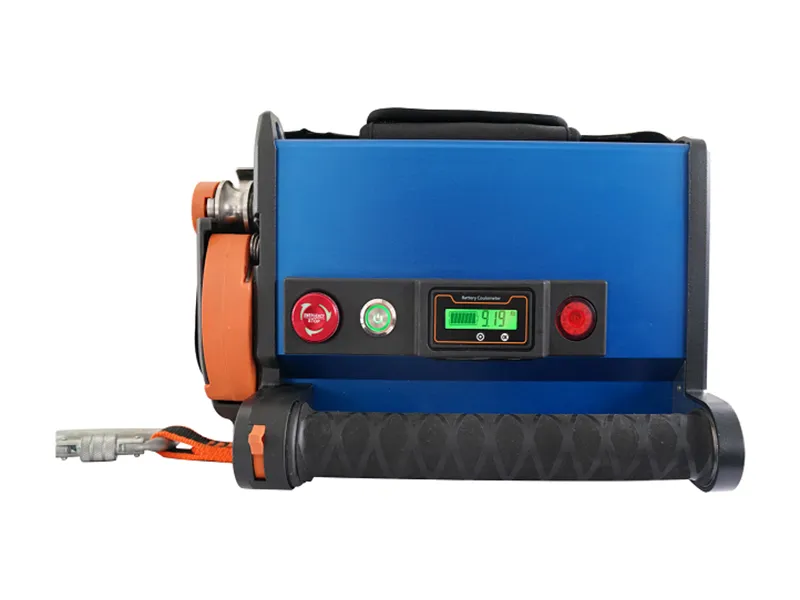

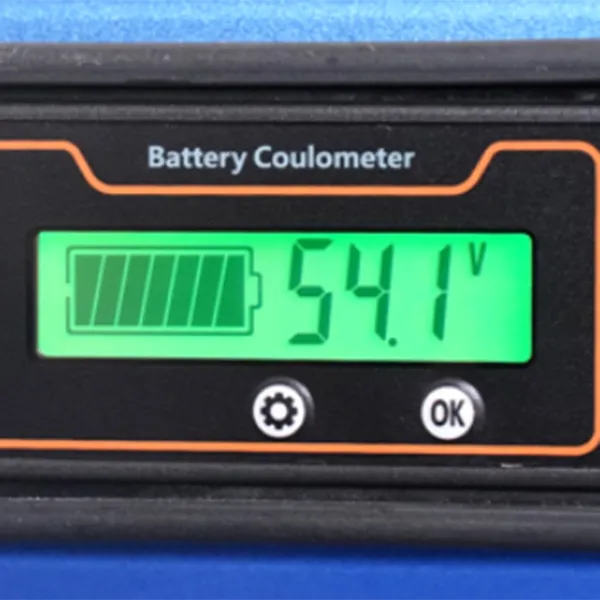

    The electric ascender is equipped with a precise coulomb meter for accurate battery level monitoring. When the battery level drops to around 10%, a buzzer alarm will sound to alert the user. If the battery level falls below 5%, the ascender’s controller automatically switches to a mode that only allows descent, preventing any upward movement and ensuring safe operation.

  • Details

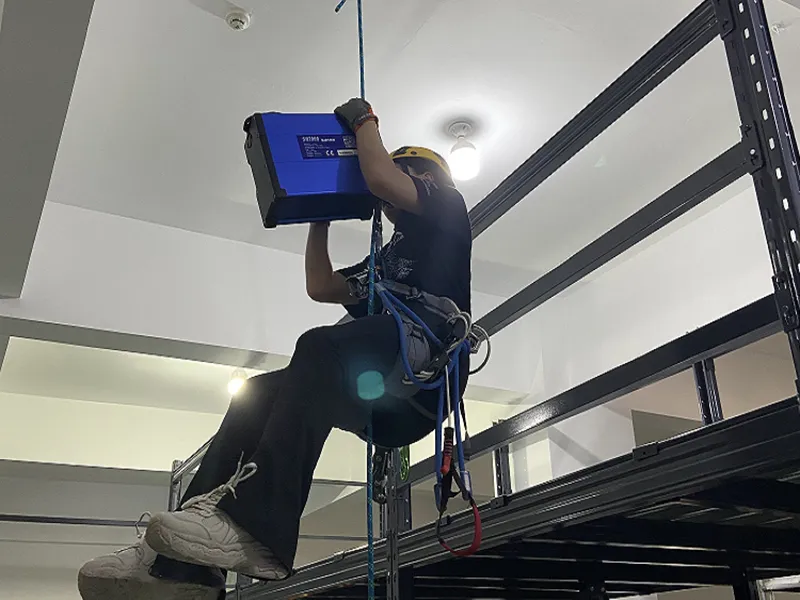

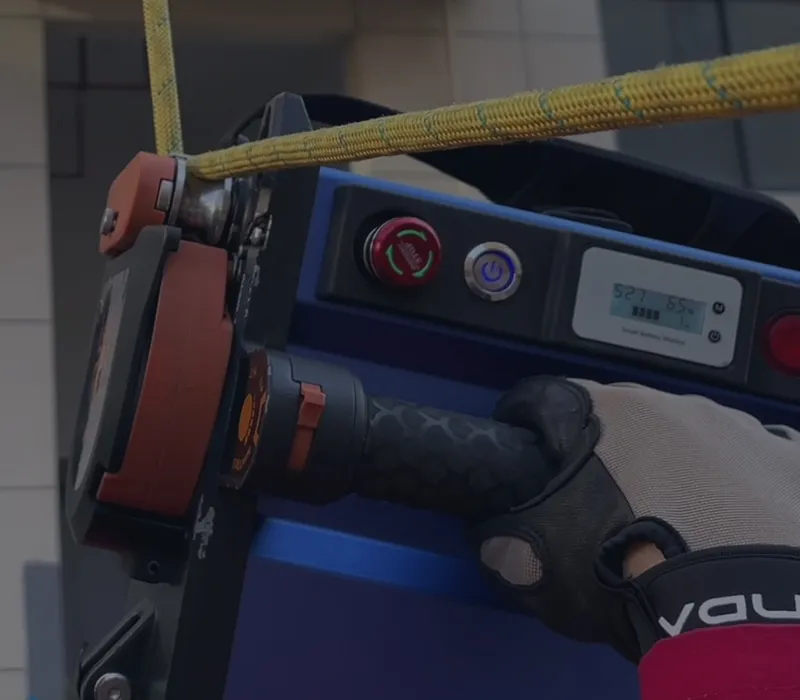

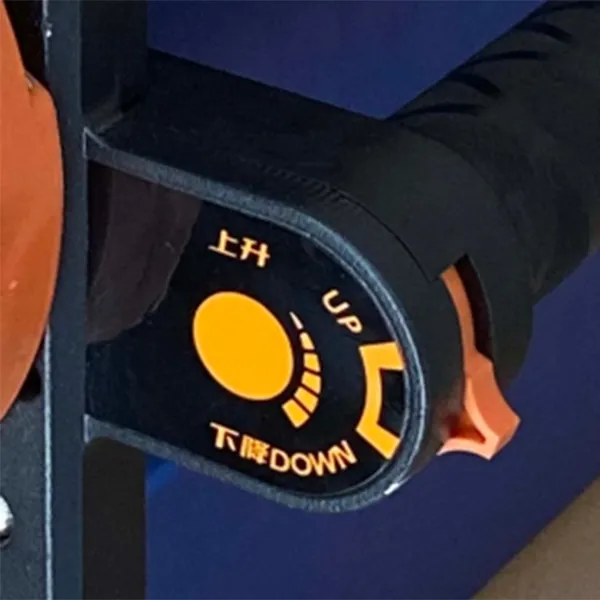

    The electric ascender features an ergonomic handle equipped with up and down directional buttons. This design allows operators to quickly and conveniently adjust the ascent or descent during operation, ensuring smooth and efficient control of the device.

  • Details

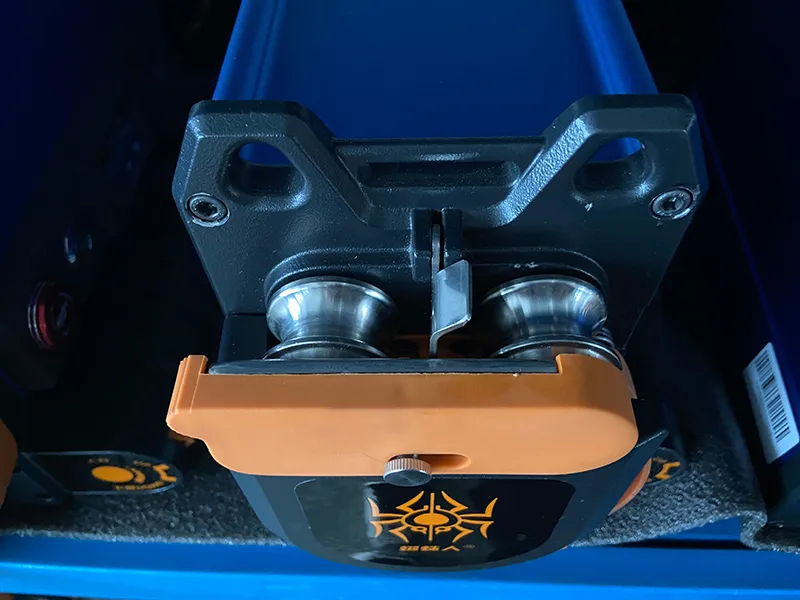

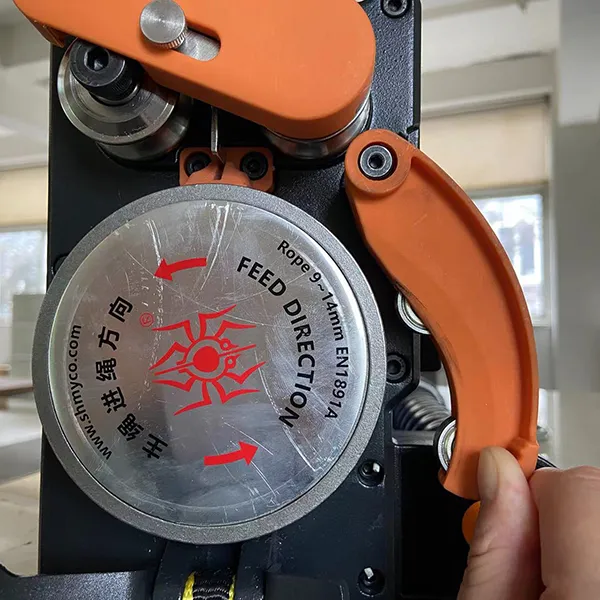

    The rope-clamping block of the electric ascender uses a spring-loaded mechanism, providing compatibility with a wider range of static rope diameters. This makes it suitable for static ropes with diameters ranging from 9-14mm, ensuring secure and reliable performance in various applications.

  • Details

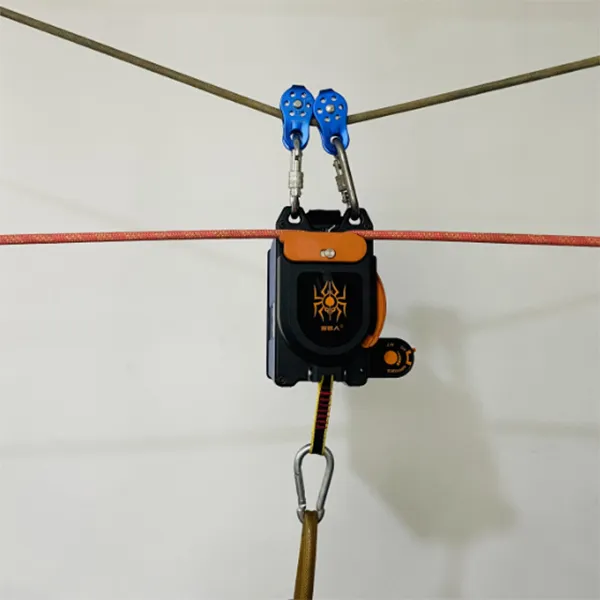

    The electric ascender can be suspended between two anchor points using auxiliary hanging rings, allowing for horizontal traversing. This feature is particularly useful for rescue operations or when transporting heavy loads between two fixed points. The ascender can be operated using a remote control or directly through the handle on the device, offering multiple options for user convenience and flexibility.

  • Details

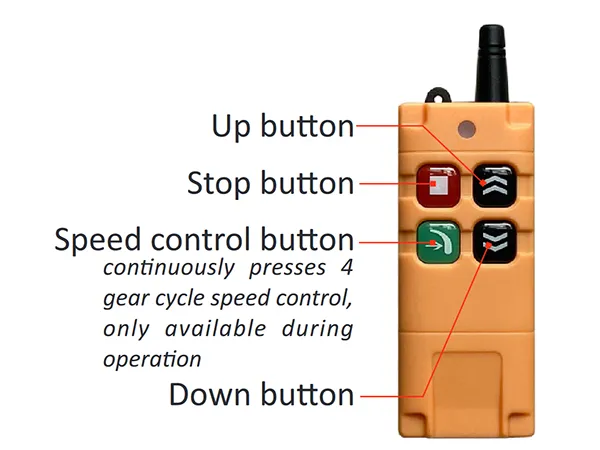

    Each electric ascender comes equipped with two remote controls, providing users with flexibility and convenience during operations. The remote controls have a range of up to 150 meters in unobstructed conditions, ensuring reliable performance over considerable distances. The remote controls feature buttons for lifting, stopping, descending, and adjusting speed, with the speed adjustment button allowing for continuous cycling through four selectable levels during operation.
    By integrating these detailed features, the SH1000 electric ascender ensures a high level of performance, safety, and user satisfaction, making it an indispensable tool for various high-altitude tasks.

  • Up button
  • Stop button
  • Speed control button
    continuously presses 4 ascender cycle speed control,only available during
    operation
  • Down button
Features
  • The electric ascender is designed to be compatible with all static ropes with diameters ranging from 9mm to 14mm.
  • Equipped with a high-precision coulomb meter for battery level indication, this rope ascender alerts users with a buzzer when the battery is low (approximately 10%). If the battery level drops below 5%, the device automatically switches to a mode that allows only descent.
  • The ascender includes an overload protection feature. When the load exceeds the maximum capacity, the device switches to a descent-only mode, preventing any upward movement to ensure user safety.
  • Designed to handle high temperatures and continuous heavy loads, the ascender has an overheat protection function. If the device overheats, a buzzer alarm sounds, and the ascender switches to descent-only mode. Normal operation resumes once the motor cools and the thermal protector resets.
  • The ascender comes with a wireless remote control that operates over a distance of more than 150 meters. The remote control also features a speed adjustment function, allowing users to change speeds wirelessly during operation.
  • The high-altitude ascending device is equipped with two auxiliary hanging rings, providing additional attachment points for tasks such as traversing, diagonal pulling, and using pulleys for double lifting heavy loads.
  • The electric ascender can operate in temperatures ranging from -20°C to 60°C. For extreme conditions, it can be custom-made to function between -30°C and 60°C, ensuring reliability in various environments.
Specifications
Rated Load 100kg
Max. Load 150kg
Ascent Speed 0-19m/min (stepless speed)
Travel distance for continuous lifting (100kg) 500m
Travel distance for intermittent lifting (150kg) 1000m
Applicable rope type Static rope EN1891A (recommend Kevlar static rope)
Applicable rope diameter 9-14mm
Remote control distance 150m (without barrier)
Protection grade IP65
Weight 12.5kg (including battery)
Temperature range -20 to 60°C

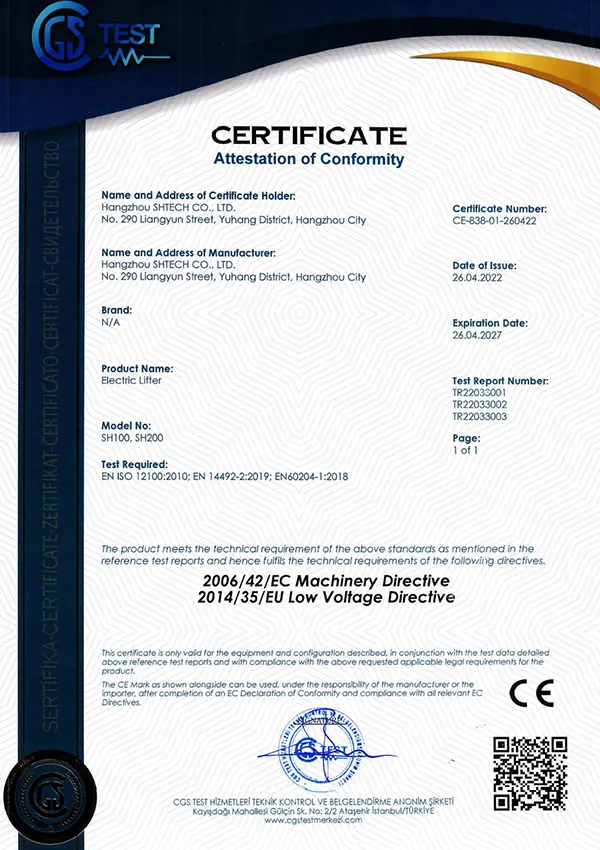

Safety Certificate
Safety Certificate
FAQs

Yes, if the weight of the lifted object exceeds the maximum lifting capacity, the device will sound an alarm and stop lifting. You should immediately reduce the load before resuming normal operation.

The emergency stop switch on this device also serves as the power off switch. Pressing it will shut down the device, functioning as an emergency stop. You can resume operation by restarting the device.

You can enjoy free repair services within one year from the date of purchase. (Material costs are additional.)
